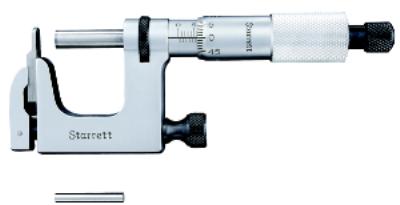

0-25mm Mul-T-Anvil Micrometers

0-25mm Mul-T-Anvil Micrometers

BRAND
Starrett
MPN
220MXRL-25
Vallen No.
04965965050
UNSPSC
27113300
UPC
49659650501
Range
0-25mm
Graduation
0.01mm

This tool was a new development in micrometer design and patent is held by Starrett . This micrometer will handle a wide variety of measurements impossible to obtain with regular micrometers, such as measuring the wall thickness of tubing, cylindrical walls from a hole or slot to an edge, many hard-to-reach locations, and the thickness of screw heads, shoulder lengths, etc .
A most interesting feature of this tool is that additional anvils of various shapes can be made up, and many of these anvils do not have to be hardened for that “special job” .
This micrometer can be furnished with .0001" graduations, but we recommend .001" or 0 .01mm for easier and more accurate readings . The Starrett Company, with our years of experience, recommends this because the anvils on this type of tool are not backed up by a frame as in a regular micrometer and could bend slightly .
Ease-of-Handling Features
• Balanced frame and thimble design ensure easy handling, better readability
• Ring-type knurled lock nut for quick and sure locking
• A choice of smooth friction thimble for uniform pressure or the combination ratchet and speeder for uniform pressure and quicker adjustment
• Interchangeable anvils are rigidly held in the vise type frame and quickly interchanged by a single lock screw adjustment
• Two hardened anvils furnished – round anvil approximately .120" diameter (3mm) and flat anvil approximately .125" (3mm) and .060" (1 .5mm) thick
• “V” Anvil for measuring thickness of screw heads and shoulder lengths available separately
• Accommodates special anvils up to 5/16" (8mm) thick
• Can be used as a height gage by removing the vise jaw
Readability Features
• Starrett satin chrome finish – no glare – resists rust
• Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
• Quick-reading figures – every thousandth numbered on inch tools
Accuracy and Long-Life Features
• Rigid one-piece frame of drop forged steel
• Extremely hard and stable one-piece spindle (the heart of our accuracy)
• Micro-lapped measuring faces
• Quick and easy adjustment
• Tool is accurate to ± .0002" or ± 0 .004mm
• Round and Flat Anvils and Carbide Faced Spindle

New
Status
Available
Typically ships in 2-4 days
Your Price
$435.22EA EA - Each(1 EACH)
Quantity
Total
$435.22
Add to Cart

PRODUCT VARIATIONS

MPN
Vallen No.
220XRL-1
04965966430
220MXRL-25
04965965050
Range
Graduation
0-1".001"
0-25mm0.01mm
