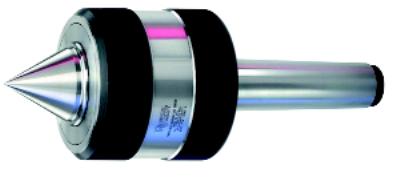

4 MT Super Quad Extra Heavy Duty Live Centers

High Pressure Coolant Approved

4 MT Super Quad Extra Heavy Duty Live Centers

MPN
10364
Vallen No.
69823010364
UNSPSC
27112809
UPC
698230103648
Taper
4 MT
Bearing Housing Diameter
3.70
Bearing Housing Length
3.31
Point Length
1.77
Point Diameter
1.63
RPM
4000
Weight Of Work Piece
3,325
Thrust Load
4,800

• The Royal Super Quad Extra Heavy-Duty Live Center is designed for turning large, heavy parts - up to 12,000 lbs.
• The Royal Super Quad Extra Heavy-Duty Live Center incorporates three massive angular-contact bearings that are secured to the point with a heavy locknut to form a strong preloaded assembly. This design is similar to a machine tool spindle cartridge and provides outstanding accuracy and rigidity.
• The large diameter point of the Royal Super Quad Live Center extends into the center’s body where it is supported by a large needle roller bearing. This further increases rigidity, reduces point deflection, and dampens vibration.
• The Royal Super Quad Extra Heavy-Duty Live Center is extremely accurate, with runout guaranteed to +/- 0.00005” TIR or better. This is unique for such a large, heavy-duty live center.
• Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures, and virtually all metalworking fluids.
• Both the point and body of the Super Quad are hardened and ground for strength and extended operating life.
• Designed for turning very large, heavy parts — up to 12,000 lbs.
• Three oversized angular contact bearings and a large needle roller bearing combine to form a very strong, rigid assembly.
• Sturdy, large diameter point for minimal deflection.
• Exclusive Roto-Shield™ coolant slinger and upgraded seal provide outstanding bearing protection for extended operating life.
• Made in the USA

New
Status
Available
Typically ships in 2-4 days
Retail Price
$2501.10
Your Price
$2425.35EA EA - Each(1 EACH)
Quantity
Total
$2425.35
You save
$75.75
Add to Cart

PRODUCT VARIATIONS

MPN
Vallen No.
10364
69823010364
10365
69823010365
10368
69823010368
10366
69823010366
Taper
Bearing Housing Diameter
Bearing Housing Length
Point Length
Point Diameter
RPM
Weight of Work Piece
Thrust Load
4 MT3.703.311.771.6340003,3254,800
5 MT4.944.452.392.38300010,65013,220
6 MT4.944.332.392.38300010,65013,220
6 MT6.945.693.233.13250012,13025,920
