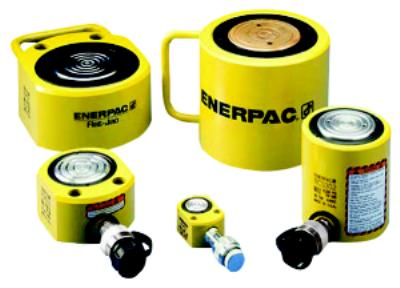

RSM, RCS-Series 50 (48.1) Low Height Hydraulic Cylinders

RSM, RCS-Series 50 (48.1) Low Height Hydraulic Cylinders

BRAND
Enerpac
MPN
RCS502
Vallen No.
66200530214
UNSPSC
27121602
UPC
662005302147
Cylinder Capacity Ton (max.)
50 (48.1)
Stroke
2.38"
Cylinder Effective Area
9.62"
Oil Capacity
22.85"
Collapsed Height
4.81"
Extended Height
7.19"
OD
4.88"
Weight
24.0lbs

RSM-Series, Flat-Jac® Cylinders:
• Compact, flat design for use where other cylinders will not fit
• RSM-750, 1000 and 1500 have handle for easy carrying
• Mounting holes permit easy fixturing
• CR-400 coupler and dustcap included on all models
• Hard chrome plated high quality steel plungers
• Grooved plunger ends require no saddle
• Single-acting, spring return
RCS-Series, Low Height Cylinders:
• Lightweight, low profile design for use in confined spaces
• Baked enamel finish for increased corrosion resistance
• Plunger wiper reduces contami nation, extending cylinder life
• CR-400 coupler and dust cap included on all models
• Grooved plunger end with threaded holes for mounting tilt saddles
• Integral handle on RCS-1002 for easy carrying
• Plated steel plungers
• Single-acting spring return

New
Status
Available
Typically ships in 2-4 days
Your Price
$1722.56EA EA - Each(1 EACH)
Quantity
Total
$1722.56
Add to Cart

PRODUCT VARIATIONS

MPN
Vallen No.
RSM50
66200530234
RSM100
66200530235
RSM200
66200530236
RSM300
66200530237
RSM500
66200530238
RCS101
66200530208
RCS302
66200530212
RCS502
66200530214
Cylinder Capacity ton (max.)
Stroke
Cylinder Effective Area
Oil Capacity
Collapsed Height
Extended Height
OD
Weight
5 (4.9)0.25"0.99"0.25"1.28"1.53"2.31" x 1.63"2.3lbs
10 (11.2)0.44"2.24"0.98"1.69"2.13"3.25" x 2.19"3.1lbs
20 (22.1)0.44"4.43"1.94"2.03"2.47"4.00" x 3.00"6.8lbs
30 (32.4)0.50"6.49"3.25"2.31"2.81"4.63" x 3.75"10.0lbs
50 (48.1)0.63"9.62"6.01"2.63"3.25"5.50" x 4.50"15.0lbs
10 (11.2)1.50"2.24"3.35"3.47"4.97"2.75"9.0lbs
30 (32.4)2.44"6.49"15.82"4.63"7.06"4.00"15.0lbs
50 (48.1)2.38"9.62"22.85"4.81"7.19"4.88"24.0lbs
