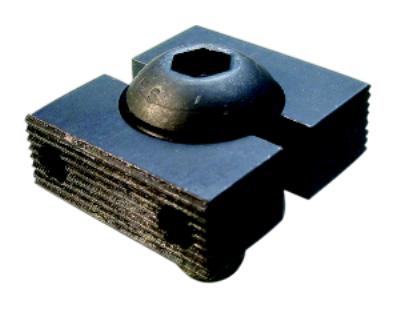

Tiny Vise 5/16-18 Double Edge Clamps

Serrated Jaws

Tiny Vise  5/16-18 Double Edge Clamps

BRAND
Carr Lane
MPN
CL-50-TV
Vallen No.
662805CL-50-TV
UNSPSC
27112132
Thread
5/16-18
Length
1"
Maximum Torque
7ft.lbs.
Horizontal Clamping Force
1500lbs


These Double Edge Clamps allow clamping two workpieces at the same time. These double clamps offer the following major improvements over earlier designs:
1. Clamping force is applied to two workpieces simultaneously by positive screw action with the turn of a hex wrench. A high-strength cap screw and thrust washer engage a mating offset countersink to exert strong clamping force.
2. Only TINY VISE mini edge clamps truly exert down- thrust force on the workpiece, to prevent it from lifting. A thrust washer underneath the clamp engages a second mating countersink to provide downward action.
3. Only TINY VISE Double Edge Clamps compensate for size variation when clamping two workpieces. Thrust washers have ID clearance to enable them to float horizontally, allowing both clamping jaws to contact the part simultaneously. This ensures that both parts are securely clamped with equal force.
• Body: 1018 Steel, Carburized Hardened, Black Oxide Finish
• Springs: 302 Stainless Steel
• Thrust Washers: 1144 Steel, Black Oxide Finish
• Guide Pins: 17-4PH Stainless Steel

New
Status
In Stock
Your Price
$79.61EA EA - Each(1 EACH)
Quantity
Total
$79.61
Add to Cart

PRODUCT VARIATIONS

MPN
Vallen No.
CL-50-TV
662805CL-50-TV
CL-80-TV
662805CL-80-TV
Thread
Length
Maximum Torque
Horizontal Clamping Force
5/16-181"7ft.lbs.1500lbs
1/2-131 1/4"15ft.lbs.2,100lbs.
